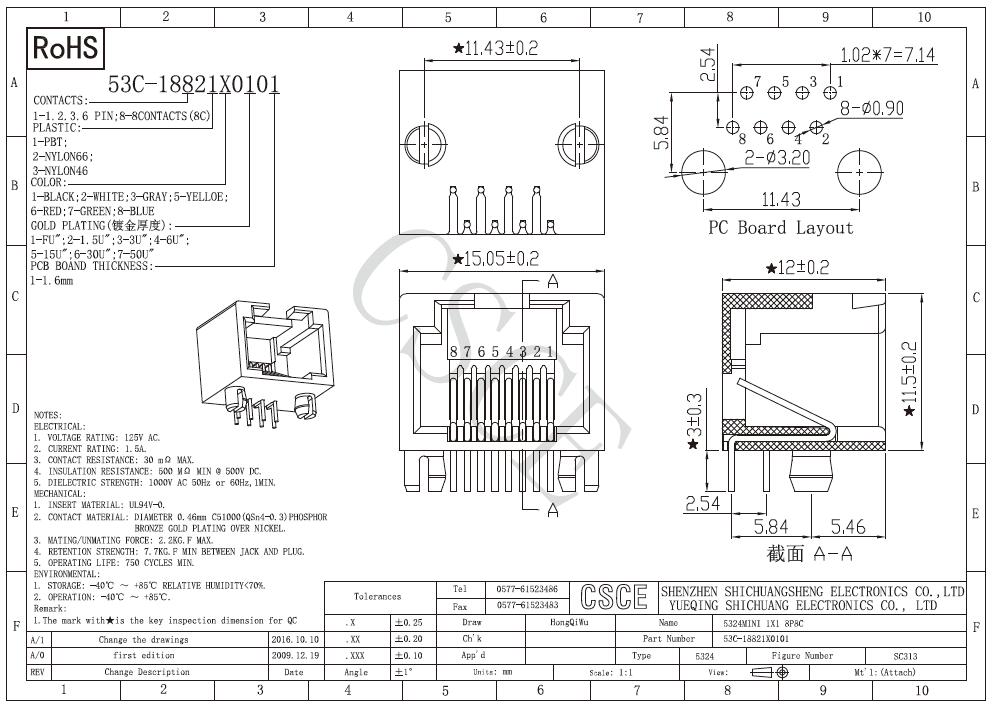

| 1. Current Rating | 1.5A |
| 2. Voltage Rating | 125v |
| 3. Contact Resistance | 30milliohm Max |
| 4. Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| 5. Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| 6. Mating/Unmating Force | 2.2KG.F MAX. |
| 7. Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| 8. Operating Life | 750 Cycles MIN. |
| 9. Operation Temperature | ﹣40℃ to +85℃ |
| 10. Storage Temperature | ﹣40℃ to +85℃ |
| 11. Housing Material | PBT |
| 12. Contact Material | Phosphor Bronze |
| 13. Contact Mating Area Plating | Gold/3u"/6u"/15u"/30u" |
